Solar Silicon Cells

Solar Silicon Cells

Price : On Request

Additional Pictures

Product Details

Features

  • Excellent SiNx coating

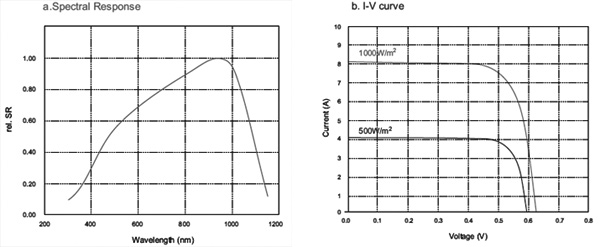

  • Excellent spectral response in short and long wavelength
  • No residual dark point
  • Strict measurement of reverse current to avoid hot spot





type Conversion Efficiency(%) Average Conversion Efficiency(%) Rated Power(Wp) Max.Power Current, lmp(A) Max.Power Voltage, Vmp(V) Short Circuit Current, Isc(A) Open Circuit Voltage, Voc(V) Fill Factor(%)
P6-1000 <10.00 <10.000 <2.43 <5.17 <0.47 <6.29 <0.585 <66.4
P6-1100 10.00-11.00 10,500 2,56 5,45 0,470 6,51 0,582 67,6
P6-1200 11.00-12.00 11,500 2,80 5,96 0,470 6,88 0,586 69,4
P6-1300 12.00-13.00 12,500 3,04 6,40 0,475 7,27 0,590 70,9
P6-1400 13.00-14.00 13,500 3,29 6,80 0,484 7,67 0,595 72,1
P6-1425 14.00-14.25 14,125 3,44 7,05 0,488 7,86 0,598 73,2
P6-1450 14.25-14.50 14,375 3,50 7,13 0,491 7,91 0,600 73,7
P6-1475 14.50-14.75 14,625 3,56 7,21 0,494 7,97 0,602 74,2
P6-1500 14.75-15.00 14,875 3,62 7,28 0,497 8,03 0,604 74,7
P6-1525 15.00-15.25 15,125 3,68 7,37 0,499 8,09 0,606 75,1
P6-1550 15.25-15.50 15,375 3,74 7,47 0,501 8,14 0,608 75,6
P6-1575 15.50-15.75 15,625 3,80 7,55 0,503 8,20 0,610 76,0
P6-1600 15.75-16.00 15,875 3,86 7,64 0,505 8,26 0,612 76,4
P6-1625 16.00-16.25 16,125 3,92 7,73 0,507 8,31 0,614 76,8
P6-1650 16.25-16.50 16,375 3,99 7,84 0,509 8,39 0,616 77,2
*STC: 1000W/? , AM 1.5, 25?; all figures bear ±2% of tolerance



Technical Specifications

  • Appearance: Front-side Silver bus bars;Blue/purple/brown/silicon nitride antireflection coating Back-side Silver/aluminum bus bars; Full-surface aluminum BSF

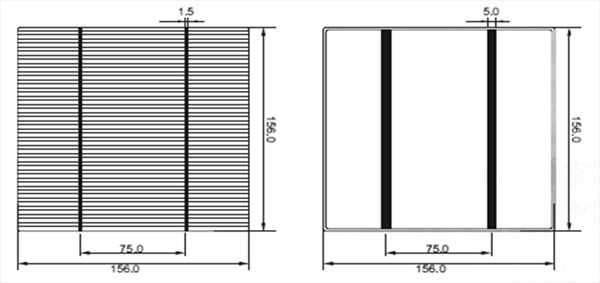

  • Dimensions: Size 156mmx156mm± 0.5 mm (pseudo-square) Area 243.36 c? Thickness: 200μm±30μm / 240μm±30μm/ 270μm±30μm
  • Coefficient: The coefficient of current (Alpha) is 0.075±0.015%/? The coefficient of voltage (Beta) is -0.312±0.015%/? The coefficient of power (Gamma) is -0.405±0.05%/? 3.

Specification
